Taking a wheel off your hand truck is usually a fast job, but the exact steps depend on your specific model. Removing a hand truck wheel involves taking off the hardware that secures the wheel to the axle, then sliding the wheel free. Knowing how to identify your retaining hardware is the most important part of the job.
Quick Answer: How Do You Remove Hand Truck Wheels?
To remove hand truck wheels, place the empty hand truck on its back. Locate the retaining hardware on the axle end, such as a cotter pin, clip, or nut, and remove it using the correct tool. Take off any washers, then slide the wheel straight off the axle.
Tools You May Need
The tools you need depend on how your wheel is secured. You likely will not need all of these tools, but keep them in mind based on your axle design:
- Wrench or socket
- Pliers
- Needle nose pliers
- Flat head screwdriver
- Snap ring pliers when appropriate
- Work gloves
- Eye protection
- Clean rag
- Penetrating lubricant for a stuck or corroded wheel when appropriate
Check your axle hardware first so you grab the right tool for the job.

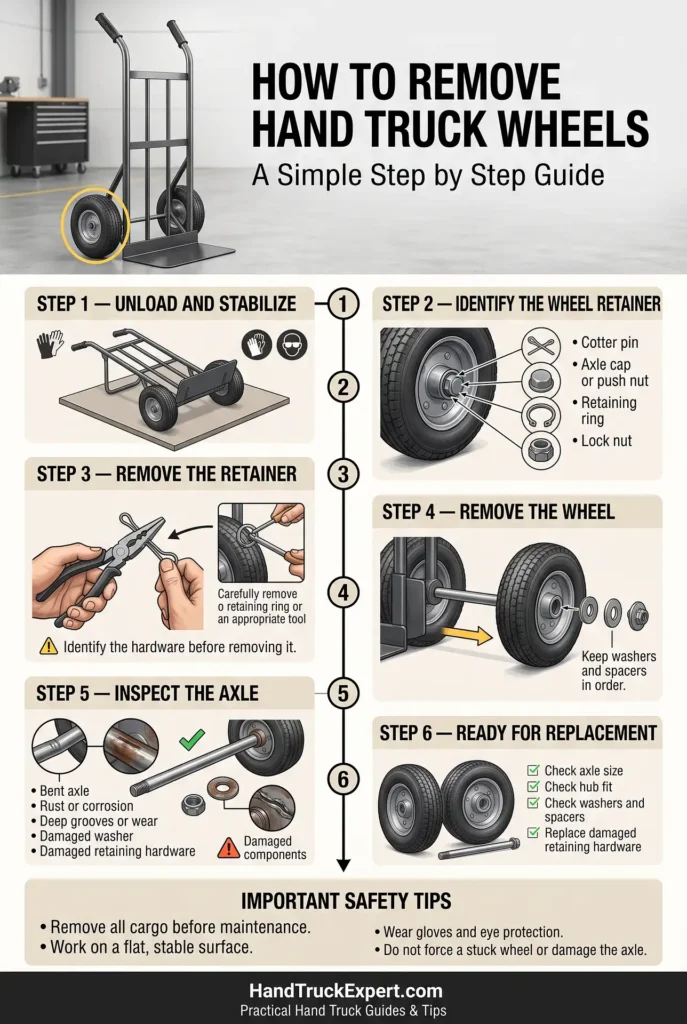

How to Remove Hand Truck Wheels Step by Step
1. Empty the Hand Truck
Remove all cargo before starting. A loaded hand truck is heavy and dangerous to work on.
2. Secure the Hand Truck
Place the empty hand truck on a flat, stable surface where it cannot roll or tip over. Laying it flat on its back is usually the safest position. The wheel should be easy to access.

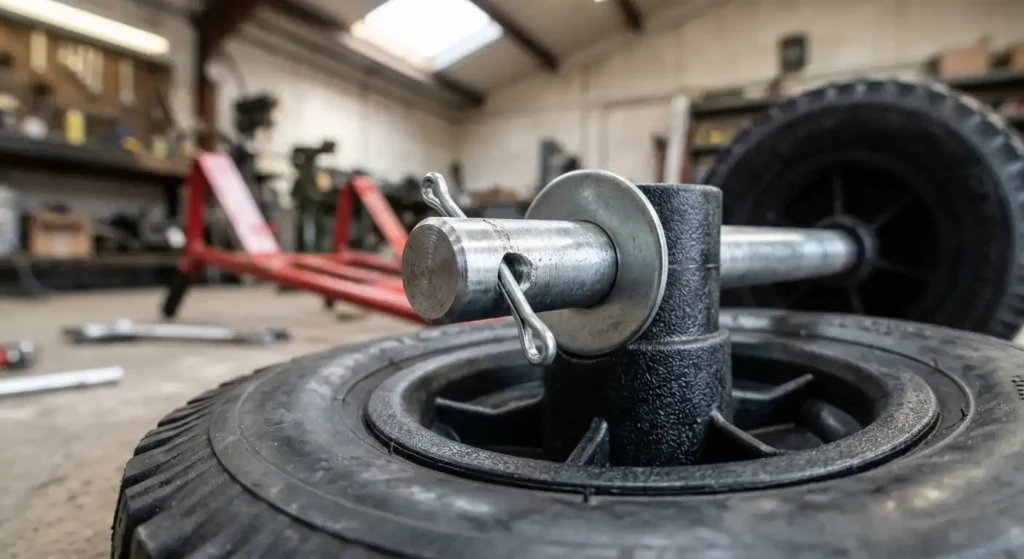

3. Identify the Wheel Retainer
Look closely at the end of the axle. You need to identify how the wheel is held in place. Common possibilities include a cotter pin, a retaining ring or clip, a push nut or axle cap, a lock washer, or a standard nut and bolt. Not all hand trucks use the same hardware.
4. Remove the Retaining Hardware
Remove the hardware based on its type. For a cotter pin, straighten the bent metal legs and pull the pin out with pliers. For a retaining ring, use the appropriate retaining ring tool or carefully remove it according to the manufacturer’s instructions.

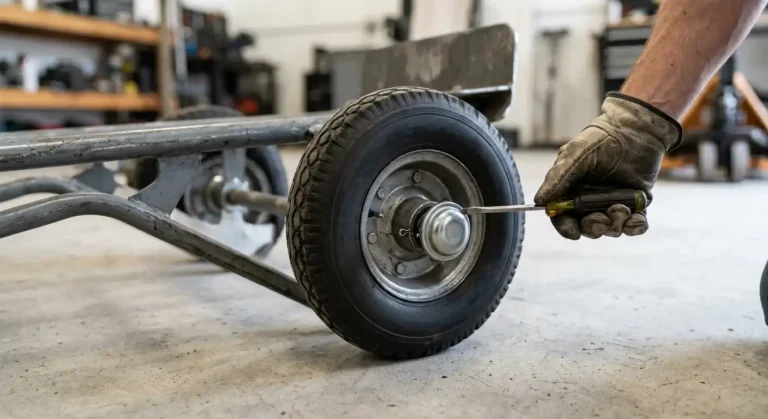

A push nut or axle cap may need to be carefully pried off with a screwdriver, and you often need to replace it rather than reuse it.
For a threaded nut, use the correct size wrench or socket, holding the axle steady if necessary. For any other design, check your owner’s manual.

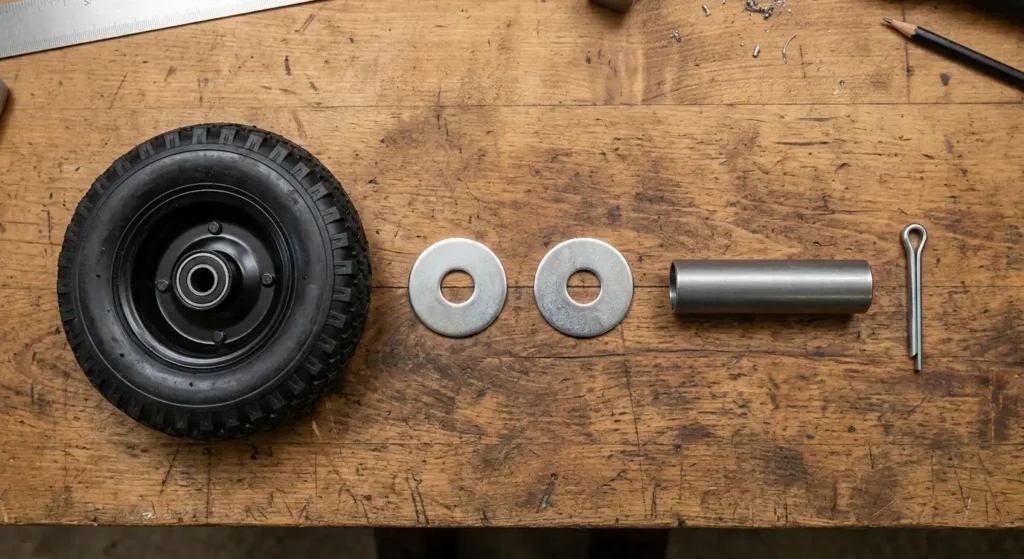

5. Remove Washers and Spacers
Pull off any washers or spacers located behind the retaining hardware. Note exactly where each washer or spacer goes. Taking a quick photo before removing these parts helps you remember the correct order later.

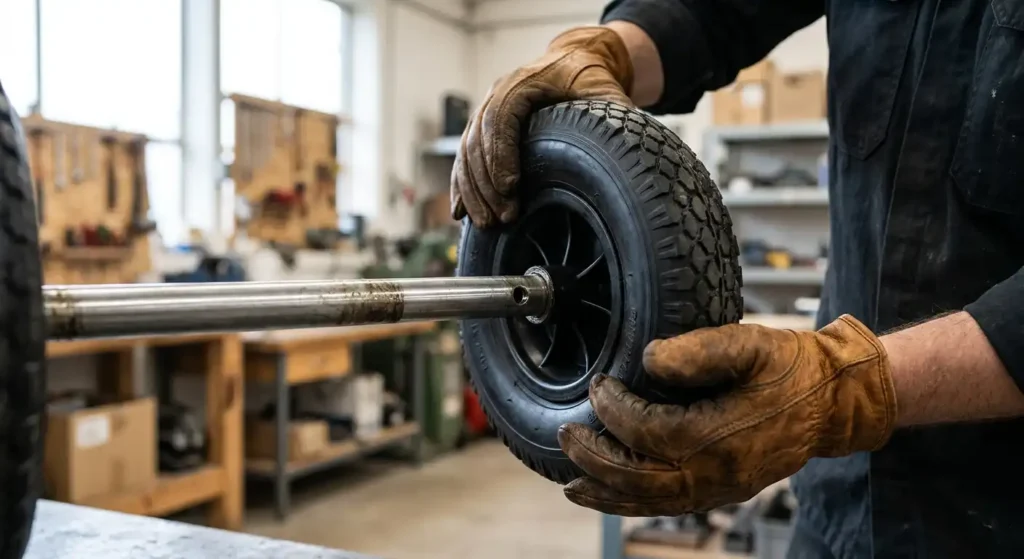

6. Slide the Wheel Off the Axle
Once the retainer and outside washers are gone, pull the wheel straight off the axle. While this is usually easy, older hand trucks might require a slight pulling motion.
7. Inspect the Wheel and Axle
Check the removed components carefully. Look for cracks, severe wear, rust, or a bent axle. Check for damaged threads, worn bearings or bushings, damaged washers, or excessive wheel play.

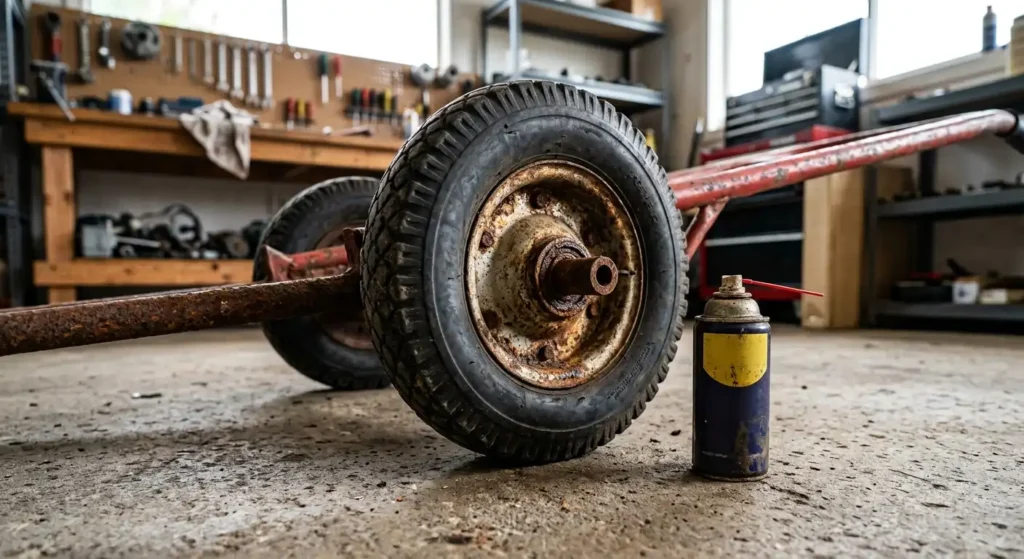

How to Remove a Stuck Hand Truck Wheel?
If the wheel will not slide off, confirm that all retaining hardware has been entirely removed first. Next, clean away dirt and rust around the axle and wheel hub using a clean rag. Apply a suitable penetrating lubricant around the axle if corrosion is causing the issue. Give the lubricant plenty of time to work into the metal.
Afterward, try gently twisting and pulling the wheel by hand. Avoid using excessive force. Hitting the wheel with heavy hammer blows can bend the axle or damage the frame. If the wheel remains stuck, seized, or badly bent, you may need professional repair or advice from the manufacturer.
How to Remove Different Types of Hand Truck Wheels?
Wheel designs vary, and the removal steps can look slightly different depending on what type of tire and hub you have.
Pneumatic Wheels: You normally remove the complete wheel assembly from the axle as a single unit. You do not need to change a hand truck tire from the metal or plastic rim just to take the wheel off the frame.
Flat Free Wheels: Solid or foam filled flat free wheels are also removed directly from the axle using the applicable retaining hardware.
Wheels With Bearings or Bushings: Some hand truck wheels contain internal bearings or bushings, along with specific spacers to keep them aligned. Keep all these internal components in their correct order as you slide the wheel away from the frame.
How to Reinstall a Hand Truck Wheel?
Start by cleaning and inspecting the bare axle. Slide the wheel back onto the axle in the correct position. Reinstall the correct washers and spacers in the exact order you removed them. Reinstall your retaining hardware.
If using nuts, follow the manufacturer’s tightening instructions to ensure they are secure but allow the wheel to spin. If using a single use push nut or cotter pin, install a new one.
Check that the wheel rotates properly by hand. Check for abnormal looseness or side to side movement. Test the hand truck without a load before returning it to normal use.
When Should You Replace a Hand Truck Wheel?
Sometimes hand truck wheel repair is not enough, and replacement is the safest option. Watch for warning signs like a cracked wheel hub, excessive tread wear, or a damaged pneumatic tire that will not hold air. Flat spots on solid tires, a seized bearing, excessive wobbling, or a wheel that simply does not roll properly are also clear signals.
Replacing hand truck wheels is much safer than trying to force a damaged wheel to keep working under heavy loads.
Safety Tips
Always remove the load from the hand truck first. Work on a stable surface so the frame does not slip. Wear suitable work gloves to protect your hands from sharp metal edges or rust. Use eye protection when removing retaining rings, clips, or pins that may spring loose unexpectedly. Keep your fingers away from pinch points between the wheel and the frame.
Use the correct tool for your specific hardware, and never force stuck components. Review standard hand truck safety tips before using your equipment again. Finally, test the hand truck empty before moving heavy boxes.
Frequently Asked Questions
Yes. Most hand truck wheels can be removed for maintenance or replacement, though the specific mounting method varies by model.
Remove all retainers, clean the axle, apply penetrating lubricant, and let it sit. Gently twist and pull the wheel without using excessive force or heavy hammer blows.
The tools depend entirely on the retainer. You might need pliers for a cotter pin, snap ring pliers for a clip, or a wrench for a nut.
Straighten the two bent metal legs on the pin, grab the head with pliers, and pull the pin completely out of the axle hole.
Yes. Most owners can replace their own wheels by following the steps above and paying close attention to the order of washers and spacers.
Look for cracked hubs, severe tread wear, air leaks in pneumatic tires, flat spots, seized bearings, or extreme wobbling during use.
